GAZ-42

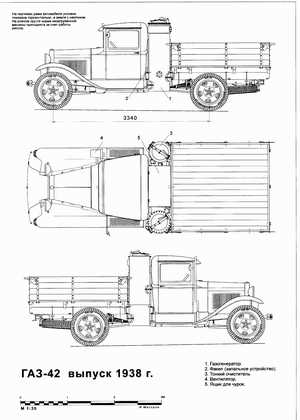

GAZ-42 mod. 1938 [1]

1. Gas generator;
2. Torch (fuse device);
3. Thin purifier;
4. Fan;
5. Box for blocks.

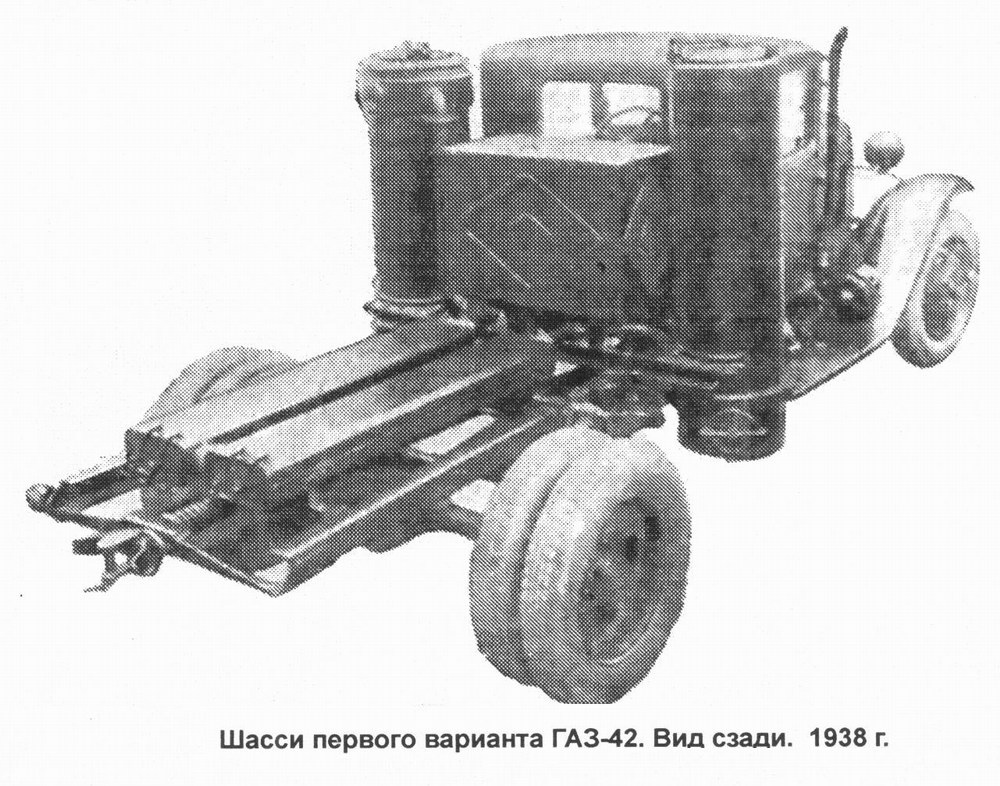

GAZ-42 mod. 1938 [1]

lower:

• Torch (fuse device);
• Gas generator mounting.

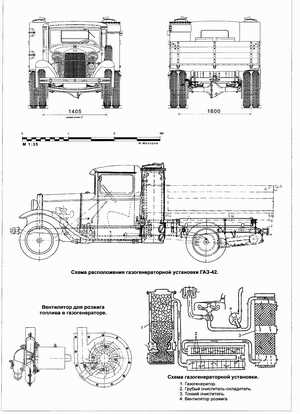

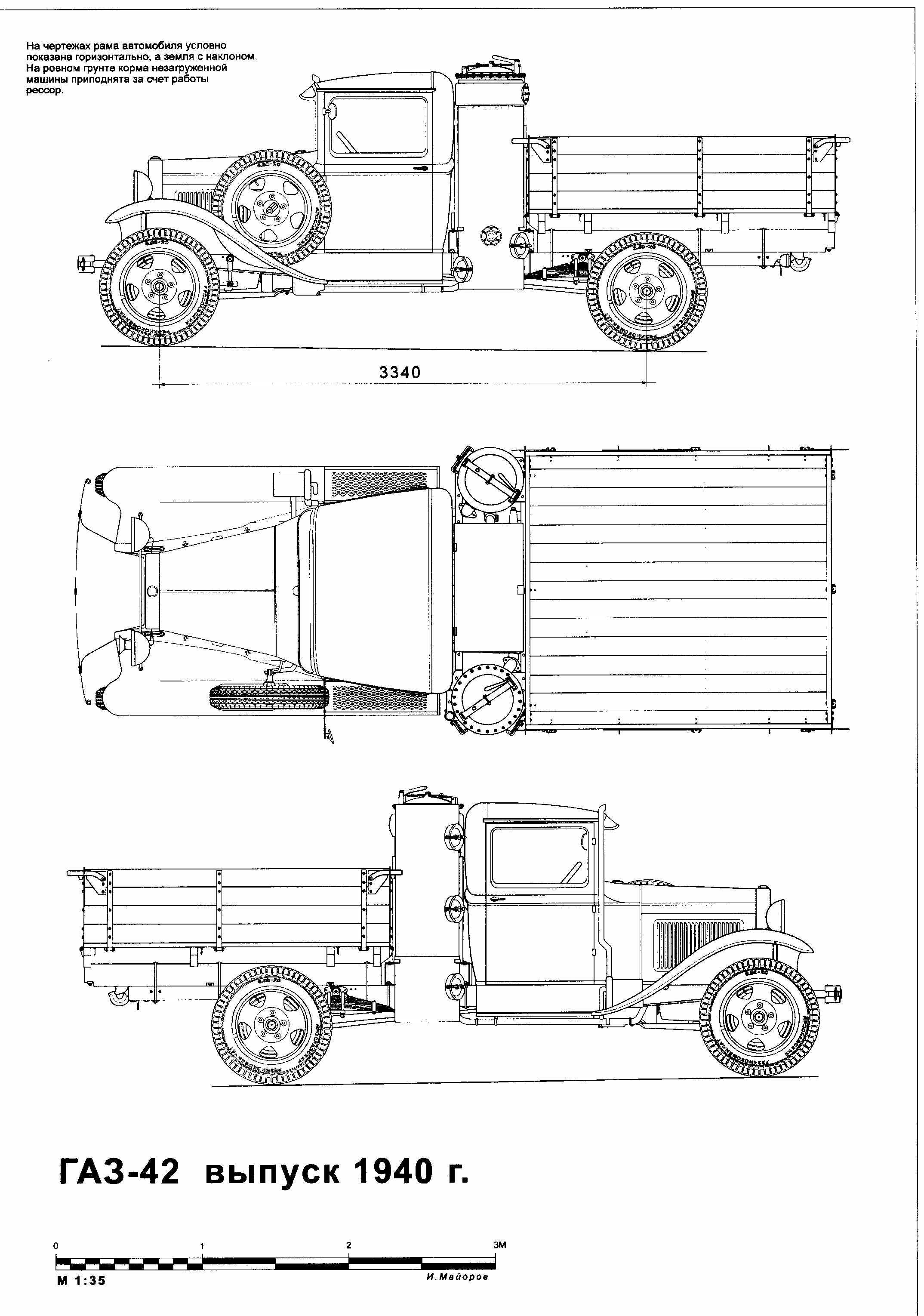

GAZ-42 mod. 1940 [1]

• Gas generator mounting;
• Fuel ignition fan;
• Gas generator device scheme:
  1. Gas generator;
  2. Crude purifier-cooler;
  3. Thin purifier;
  4. Fuel ignition fan.

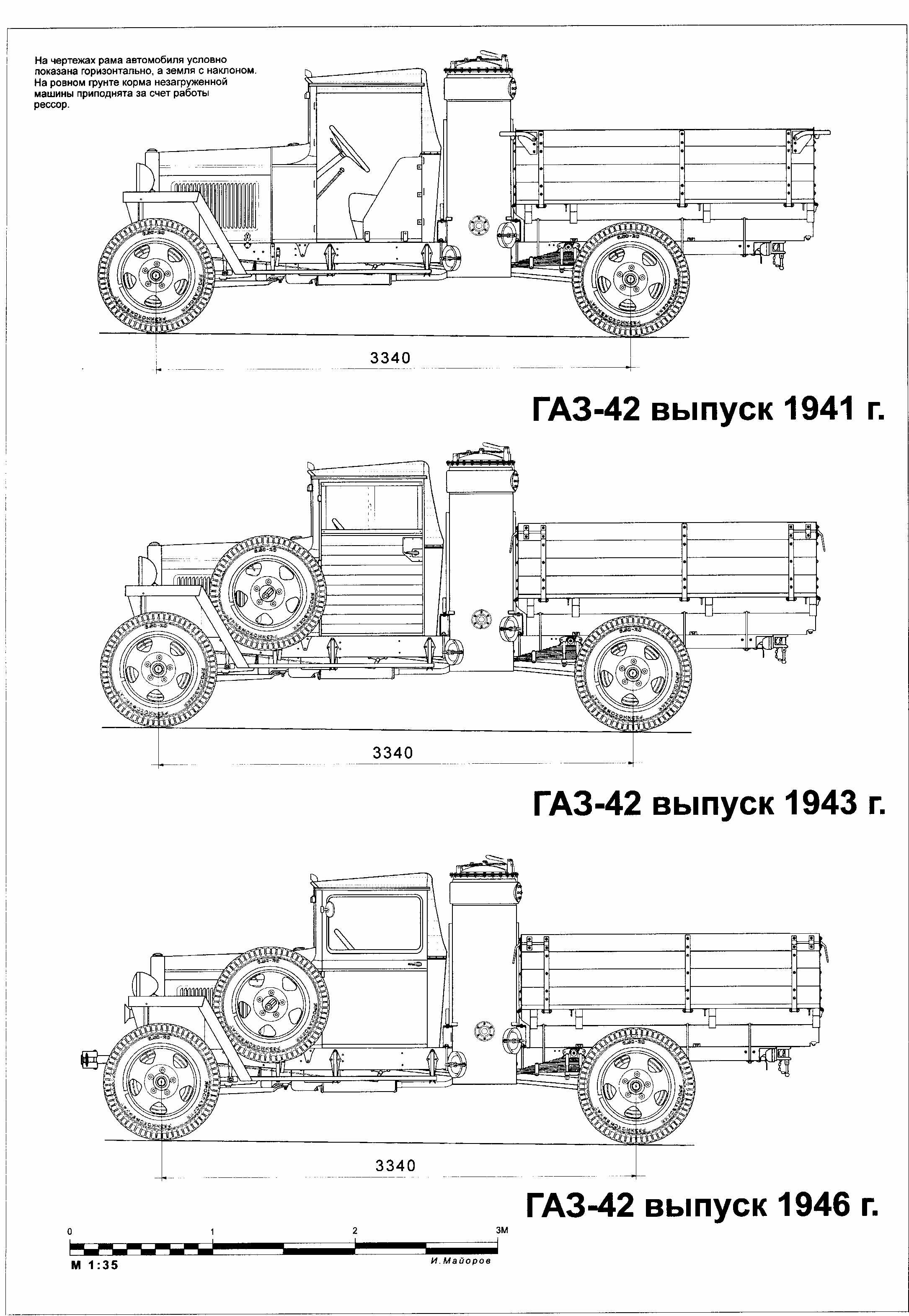

GAZ-42 [1]

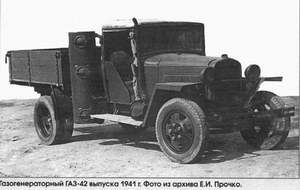

• Mod. 1941;
• Mod. 1943;
• Mod. 1946

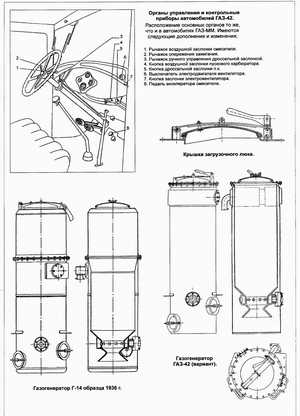

Controls of GAZ-42 [1]

1. Mixer's arm of choke;
2. Ignition advance arm;
3. Manual control arm of choker;
4. Button of choke of starter carburetor;
5. Button of choker of starter carburetor;
6. Fan electric motor's switch;
7. Damper of electric fan;
8. Accelerator pedal of mixer;

lower:

• loading hatch's cover;
• G-14 generator mod. 1936;
• GAZ-42 generator (variant).
