Double-turreted T-26

(Blueprints)

Updated February 25, 2007
backhomedown

T-26 equipped with machine-guns (on upper-down view one turret isn't shown) T-26 equipped with machine-guns (note that one turret has been omitted on the plan view) [3]

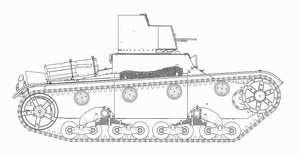

Double-turreted T-26 tank of the second half of 1933. The tank has riveted and welded-riveted turrets Double-turreted T-26 tank of the second half of 1933. The tank has riveted and welded-riveted turrets Double-turreted T-26 tank of the second half of 1933

Twin turret T-26 tank from the second half of 1933. The tank has a combination of riveted and welded-riveted turrets [1]



Photo: Twin-turret T-26 (with machine-gun armament) crossing a river during combat training of the Moscow Military District forces, 1936. The vehicle has a riveted hull, with welded & riveted turrets [1]
T-26 Mod. 31 with MG armament section Cross-section of a T-26 Mod. 1931 with MG armament [3]
T-26 with two turrets and mixed weaponry mod. of the beginngin of the 1932T-26 with two turrets and mixed weaponry mod. of the beginngin of the 1932Double-turreted T-26 tank with gun-machine-gun armament is at the manoeuvres.

T-26M32 with twin turrets and mixed armaments. Modification of the beginning of 1932 [1]



Photo: twin-turreted T-26 tank with gun & machine-gun armament during manoeuvres in the Moscow Military district 1934. The tank has riveted hull & turrets.[1]



-26 equipped with mixed weapons. (on upper-down view one turret isn't shown)

T-26 equipped with mixed armaments. (one turret is omitted on the plan elevation.) [3]


Literature
  1. M. Kolomiets, M. Svirin,"T-26 Legkiy Tank" Frontovaya Illystratsiya, No 1, 2003
  2. Pavlov I.V. Pavlov M.V. "Sovetskiye Tanki i Samokhodno-Artilleriyskie Ustanovki 1939-1945" Moscow, 1996.
  3. M. Svirin, M. Kolomiets, "T-26 Light tank", part 1, Armada, ? year
