Double-turreted T-26

(Photos)

Updated February 25, 2007
backhomedown

MG - Armed

Double-turreted T-26 tank of the second half of 1933

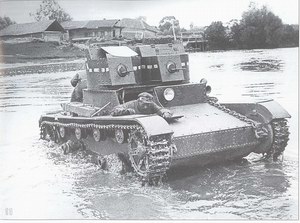

Twin-turret T-26 (with machine-gun armament) crossing a river during combat training of the Moscow Military District forces, 1936. The vehicle has a riveted hull, with welded & riveted turrets [1]

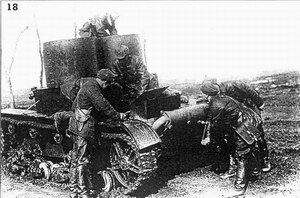

À T-26 with a welded hull and welded right-hand turret. Moscow Military District maneuvers. 1933À T-26 with a welded hull and welded right-hand turret. Moscow Military District maneuvers. 1933

A T-26 with a welded hull and welded right-hand turret. Moscow Military District maneuvers. 1933 [3]

A twin-turreted T-26 undergoing modernisation. Kubrnka 1940Atwin-turreted T-26 undergoing modernisation. Kubrnka 1940

A twin-turreted T-26 undergoing upgrading. Kubrnka 1940 This photo gives a good view of the road wheels introduced on later model vehicles.[3]
A technical service is being given to the double-turreted T-26

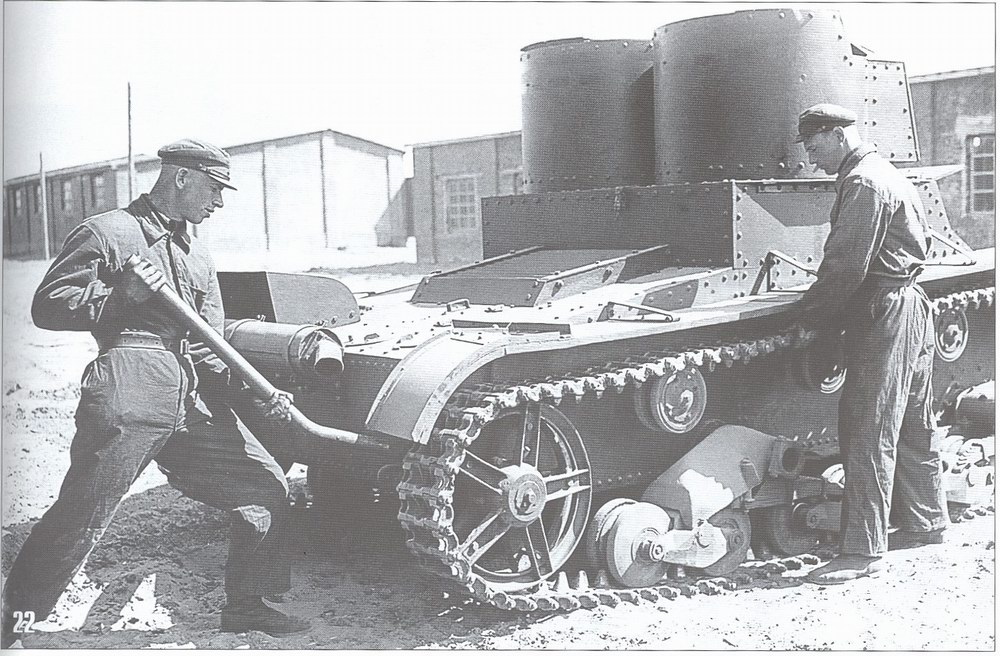

A mechanical service is being undertaken to the twin-turreted T-26 from the first half of 1932 production series (with riveted hull & turrets). Moscow Military district, summer 1934. Note that the muffler was fixed by with 2 clamps [1]
Twin-turreted T-26 mod. 31 and T-26 mod. 33 with radio station and night lights. The 35th Light Tank Brigade, Winter War, Feb. 1940 [2]
T-26 mod. 1931 knocked out by German troops (the vehicle's plate number "8314" is painted white on green background). Uktaine. July 1941. [4]



upMixed Arms

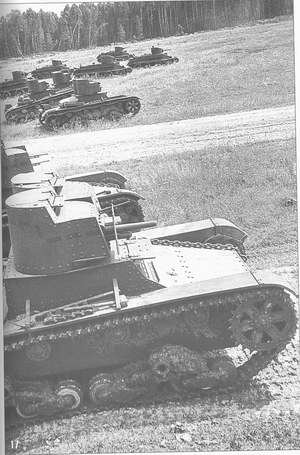

Double-turreted T-26 tank with gun-machine-gun armament is at the manoeuvres.

Twin-turreted T-26 tank with gun & machine-gun armament during manoeuvres in the Moscow Military district 1934. The tank has riveted hull & turrets.[1]

Double-turreted T-26 tank with mixed armament equipped with radio station No. 7N. Manoeuvres 1934.

Double-turreted T-26 tank with mixed armament and equipped with radio transmitter No. 7N type during manoeuvres in 1934. Coil antenna is mounted on the hull of the tank [1].
The first double turretted T-26 tank with 37-mm B-3 gunThe first double turretted T-26 tank with 37-mm B-3 gun

The first twin turreted T-26 tank equipped with 37-mm B-3 gun. The vehicle incorporates a number of common elements for tanks constructed in 1931 - riveted turrets, muffler fixed with 2 clamps, lack of jacket above air outlet. [1]

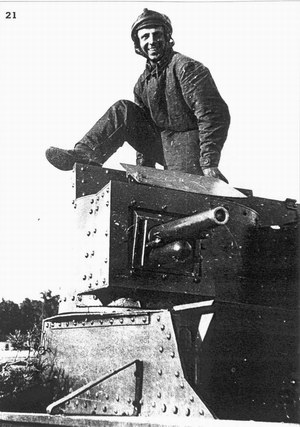

A twin-turreted T-26 armed with the PS-1 cannon. The auxiliary gun shield on the weapon is missing.

A twin-turreted T-26 armed with the PS-1 cannon. The auxiliary gun shield on the weapon is missing. [3]

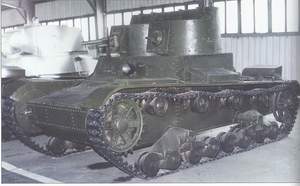

T-26 with two turrets and mixed weaponry. Mod. of the beginning of 1932 [1]

T-26M32 with twin turrets and mixed armament (gun & machine-gun). Modification of the beginning of 1932 [1]

Literature
  1. M. Kolomiets, M. Svirin,"T-26 Legkiy Tank" Frontovaya Illystratsiya, No 1, 2003
  2. M. Kolomiets. "Tanki v Zimnei Voine 1939-40", Frontovaya Illyustratsia, 3/2001
  3. M. Svirin, M. Kolomiets, "T-26 Light tank", part 1, Armada, ? year-
  4. T. Abashidze, I. Moschansky, "Kievskaya Strategicheskaya Oboronitelnaya operatsia. Part 1. Tragedia pod Umanju" , 2003
