Towed Equipment

UpdatedSeptember 19, 2005
backhomedown

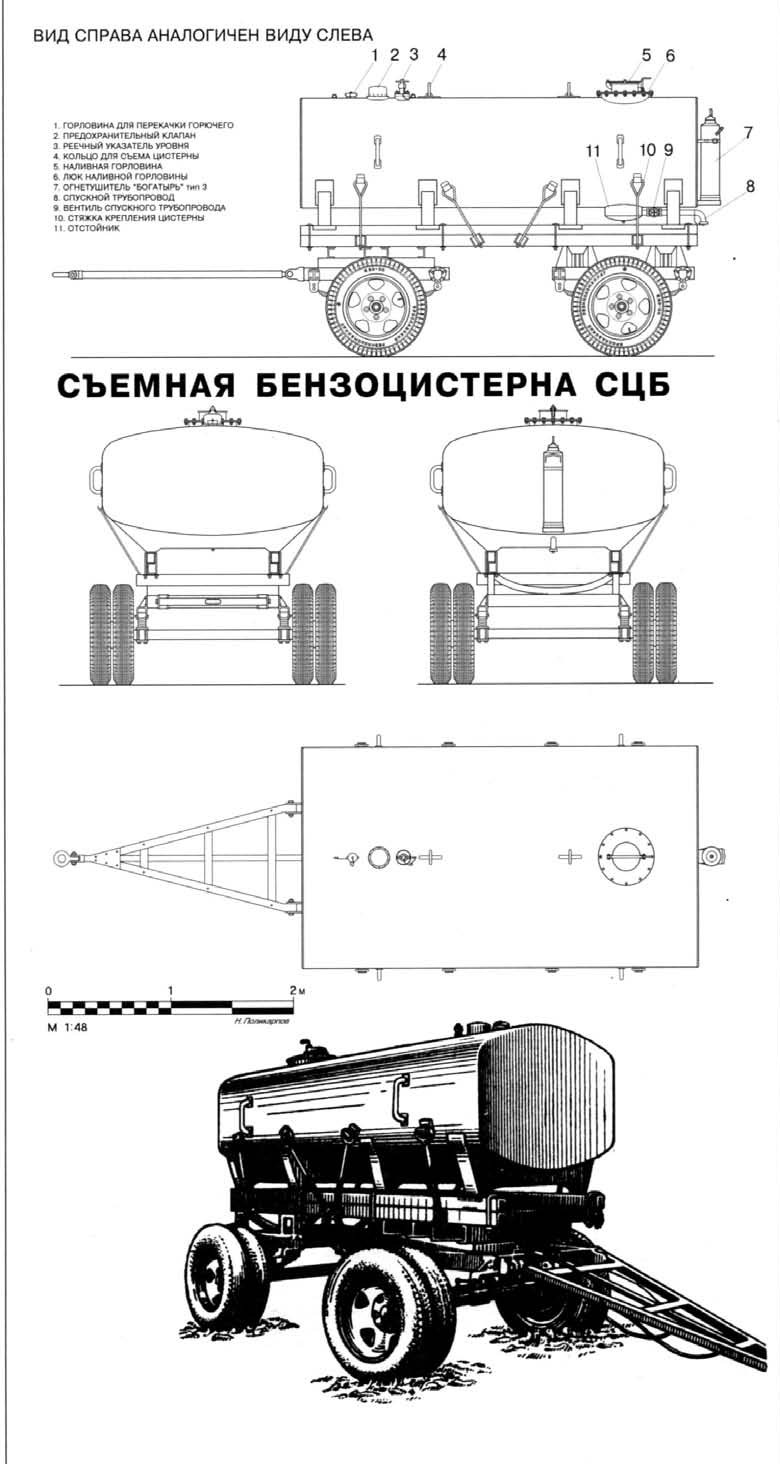

STsB tank Removable gasoline tank "STsB"[2]
1-axe cistern Gasoline tank mounted on single-axis trailer 1-AP-1[3]

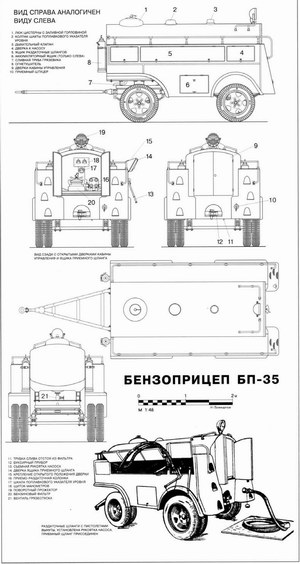

BP-35 BP-35 gasoline-tank based on short-cut 2-AP-2 trailer[3]
ZIS-6
ZIS-6		 ZIS-6 fueling truck with BP-35 tank-trailers filling Levanevsky's DB-A airplane, 1937 [1]

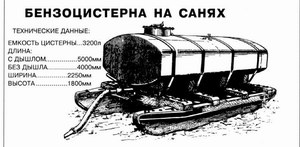

Tank Fuel tank mounted on sleigh [3]

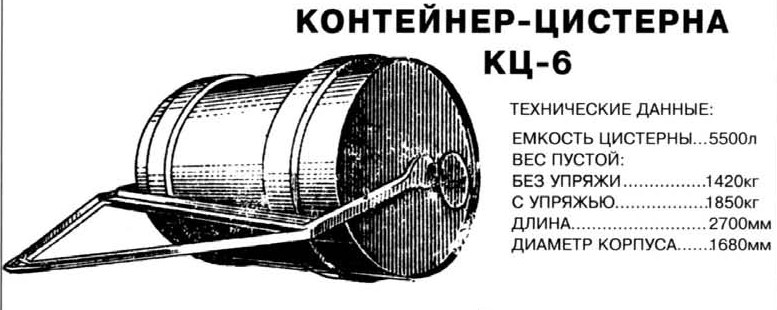

KTs-6

Cistern-container KTs-6 [3]

Specification:

Volume - 5500 liters

Weight (empty):

  • without harness - 1420 kg;
  • with harness - 1850 kg;

Length - 2700 mm;

Hull diameter - 1680 mm

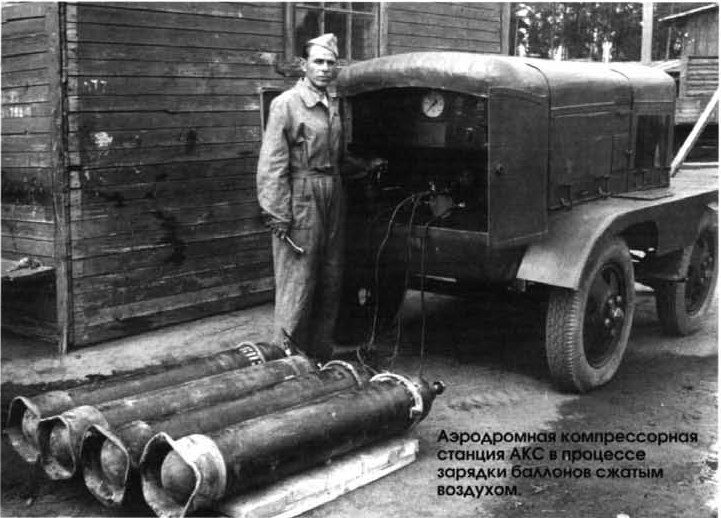

cmopressor Airfield compressor station "AKS" [4]

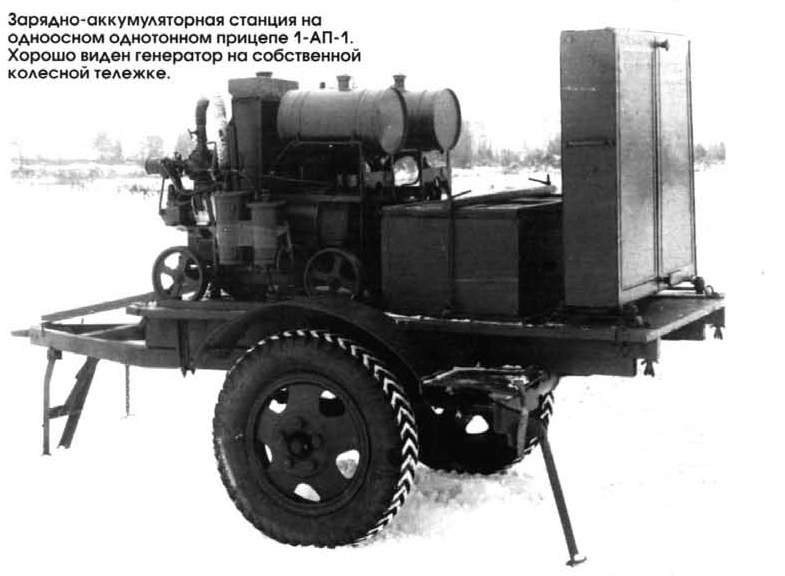

Accumulator Accumulator-charging stantion mounted on single-axis 1-ton 1-AP-1 trailer. [4]

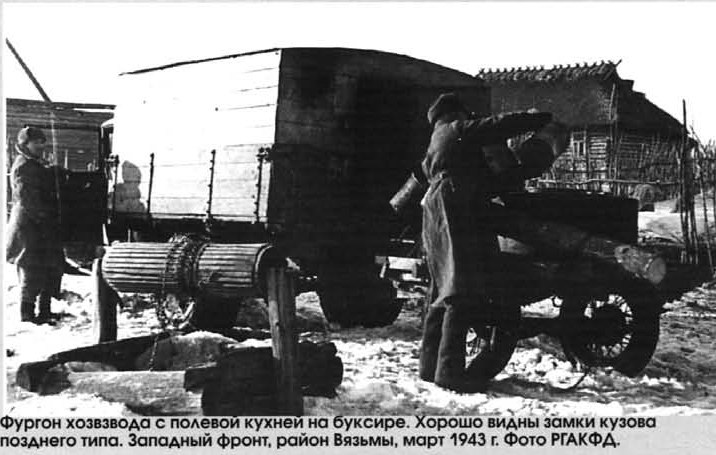

Kitchen Van of field services towing field-kitchen. The Western Front, Vyazma area, March 1943 [4]
Literature
  1. M-Hobby, #8, 3/96
  2. M-Hobby. #2/97
  3. M-Hobby, #3/97
  4. M-Hobby, #7/97
